Overview of the hallTechnical data

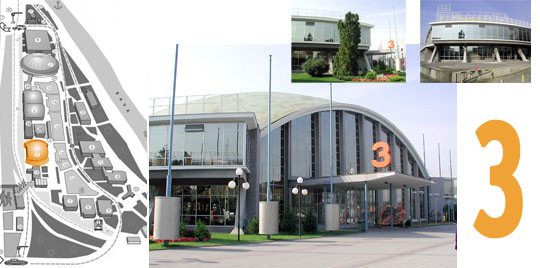

The Hall 3 is rectangular in shape, with arched walls.

On the shorter sides, the hall has got two levels and a gallery, the basement section of which is used for the warehouse and auxiliary facilities, whereas the ground floor and gallery for exhibiting.

The hall is covered by a reinforced concrete shell structure. The maximum height in the hall center is 20.32 m.

All external walls of the hall exhibition space (other than the ground floor section under the gallery) are made of glass from the floor to the spherical section.

The total area is 8,109 sq. m., of which the exhibiting space of 4,438 sq. m. The hall has got heating and ventilation.

SPECIFICATIONS:

  • Exhibition space 3,510 sq. m
  • Entrance door (Vitvang) maximum dimensions 865 x 555 cm
  • Freight entrance to the Administration building maximum dimensions 370 x 390 cm
  • Freight entrance to the Boulevard and to the Administration building maximum dimensions 475 x 440 cm
  • Freight entrance to the Boulevard next to Hall 2 maximum dimensions 500 x 425 cm
  • Entrance to Hall 2 maximum dimensions 245 x 300 cm
  • Cement coated concrete slab floor, maximum loading 2,000 kg / sq. m
  • Maximum height in the hall center 20.32 m
  • Maximum height next to the wall under the gallery 3.75 m
  • Demonstration high voltage power outlets 3 x 380 V, 50 Hz
  • Lighting high voltage power outlets 220 V, 50 Hz
  • Telephone connections available
  • Demonstration water inlet and outlet at certain places
  • General hall illumination is inadequate for stand lighting
  • Power connection at any place

SPECIFICATIONS:

  • Exhibition space 928 sq. m
  • There is no elevator to the gallery or any possibility of exhibiting larger and heavier exhibits
  • Terrazzo floor, maximum loading 650 kg / sq. m
  • Maximum height of gallery side 3 m
  • Demonstration high voltage power outlets 3 x 380 V, 50 Hz
  • Lighting high voltage power outlets 220 V, 50 Hz
  • Telephone connections available
  • Demonstration water inlet and outlet not available
  • General illumination adequate for stand lighting
  • Power connection at any place
